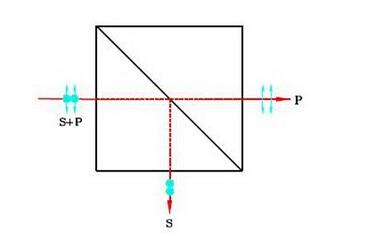

| The PBS can be used as a polarizer, beamsplitter or beam combiners. The output beam which is parallel to input beam is called p-polarized beam while the orthogonal output beam is defined as s-polarized beam. |
 |
 |
||
| Material | Dimension | Part No. | ||
| BK7 | 5.0x5.0x5.0 | PBS0105 | ||
| BK7 | 10.0x10.0x10.0 | PBS0110 | ||
| BK7 | 12.7x12.7x12.7 | PBS0112 | ||
| BK7 | 20.0x20.0x20.0 | PBS0120 | ||
| BK7 | 25.4x25.4x25.4 | PBS0125 | ||
| Material: | Optical grade BK7 | |
| Dimension Tolerance: | +0.0,-0.2mm | |
| Wavefront Distortion: | ||
| Beam Deviation: | <5' | |
| Surface Quality: | 40/20 Scratch and Dig | |
| Extinction Ratio: | >500:1 | |
| Principal Transmittance: | Tp>99% and Ts<0.2% | |
| Principal Reflectance: | Rs>99.8% and Rp<1% | |
| T/R: | 50/50±5%, for natrual light T=(Ts+Tp)/2, R=(Rs+Rp)/2 |
|
| Standard Wavelength: | 442,488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm | |
| Broaden Wavelength: | 450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm | |
