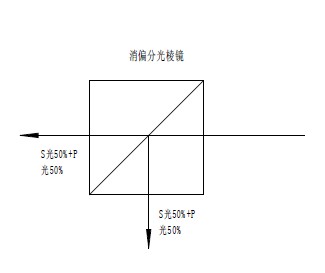

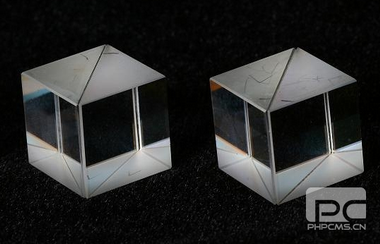

| Non-polarizing Cube Beamsplitter consists of a pair of precision high tolerance right angle prisms cemented together with a metallic-dielectric coating on the hypotenuse of one of the prisms. The low polarization dependence of the metallic-dielectric coating allows the transmission and reflection for S- and P- polarization states to be within 5% of each other. This means that theywill not change the state of polarization of the incident beam. |  |
||
| Material | Dimension | Part No. | |
| BK7 | 5.0x5.0x5.0 | NPBS0105 | |
| BK7 | 10.0x10.0x10.0 | NPBS0110 | |
| BK7 | 12.7x12.7x12.7 | NPBS0112 | |
| BK7 | 20.0x20.0x20.0 | NPBS0120 | |
| BK7 | 25.4x25.4x25.4 | NPBS0125 |
|
| Material: | Optical grade BK7 | |
| Dimension Tolerance: | +0.0,-0.2mm | |
| Wavefront Distortion: | ||
| Beam Deviation: | <5' | |
| Surface Quality: | 40/20 Scratch and Dig | |
| Extinction Ratio: | >500:1 | |
| Transmittance: | 45%±5% | |
| Absorption: | <10% | |
| Polarization difference | <6% | |
| Standard Wavelength: | 442,488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm | |
| Broaden Wavelength: | 450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm | |
