CLaser supply various diffusion bonded composite crystals, which are used to effectively decrease heat effect of Solid-State High-Power Laser.
High damage threshold
Improve beam quality
Decrease thermal effect
Improve efficiency
Compact size

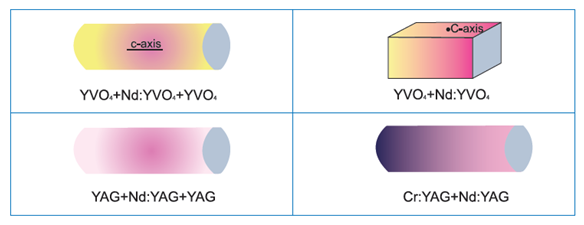

Composite laser rod is a crystal consisting of two, three or more parts with different dopant level. Usually, doped and undoped material used. Dopant level and rod configuration can vary as well as the number of parts. It can have different wedged structure, Brewster angles, etc.
| Nd:YVO4 Doping | atm 0.2-3% |
| Nd:YAG Doping | 0.5-1.1% |
| Wavefront Distortion | < l /8 at 633 nm |
| Orientation | ±0.5deg |
| Dimensional Tolerance | ± 0.1mm |
| Surface quality | 10/5 Scratch/Dig per MIL-O-13830B |
| Flatness | l /10 at 633 nm |
| Clear Aperture | > Central 90% |
| Parallelism | < 10 arc sec. |
| Intrinsic Loss | < 0.1% cm -1 |
| Coating: | AR or HR coating |
