Optically Contacted Zero-Order Waveplate
| Optically Contacted Thickness 1.5~2mm Double Retardation Plates Broad Spectral Bandwidth Wide Temp. bandwidth |
 |
|||||
Diameter |
φ10 | φ12.7 | φ15 | φ20 | φ25.4 | |
| Part No. | WPZ1610 | WPZ1612 | WPZ1615 | WPZ1620 | WPZ1625 | |
| Material: | Optical grade Crystal Quartz |
| Dimension Tolerance: | +0.0,-0.2mm |
| Wavefront Distortion: | |
| Retardation Tolerance: | < 1/500 |
| Surface Quality: | 20/10 Scratch and Dig |
| AR Coating: | R<0.2% at center wavelength |
| Standard wavelength: | 532nm, 632.8nm, 800nm, 850nm, 980nm, 1064nm, 1310nm, 1550nm |
| Cemented by Epoxy Better Temperature Bandwidth Wide Wavelength Bandwidth AR Coated, R<0.2% |
 |
|||||
Diameter |
φ10.0 | φ12.7 | φ15.0 | φ20.0 | φ25.4 | |
| Part No. | WPZ5610 | WPZ5612 | WPZ5615 | WPZ5620 | WPZ5625 | |
|
| Material: | Optical grade Crystal Quartz |
| Dimension Tolerance: | +0.0,-0.2mm |
| Wavefront Distortion: | |
| Retardation Tolerance: | < 1/500 |
| Surface Quality: | 20/10 Scratch and Dig |
| AR Coating: | R<0.2% at center wavelength |
| Standard wavelength: | 266nm, 355nm, 532nm, 632.8nm, 800nm, 850nm, 980nm, 1064nm, 1310nm, 1550nm |

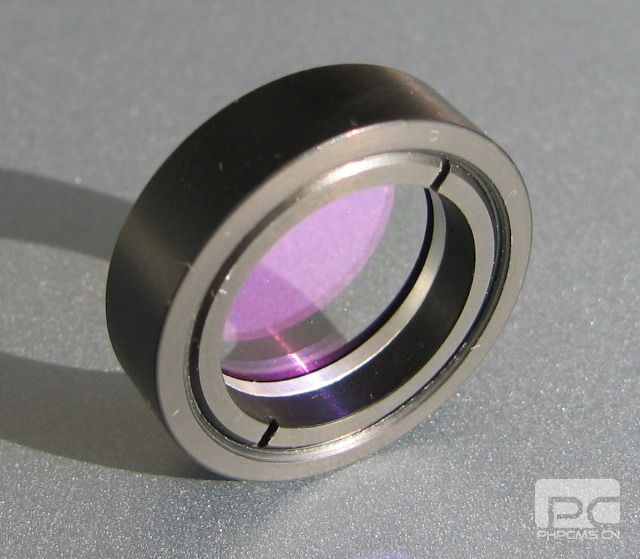

| Double Retardation Plates AR Coated,R<0.2% and Mounted High Damage Threshold Better Temperature Bandwidth Wide Wavelength Bandwidth |
 |
|||||
Diameter |
φ10 | φ12.7 | φ15 | φ20 | φ25.4 | |
| Part No. | WPZ2610 | WPZ2612 | WPZ2615 | WPZ2620 | WPZ2625 | |
|
| Material: | Optical grade Crystal Quartz |
| Dimension Tolerance: | +0.0,-0.2mm |
| Wavefront Distortion: | |
| Retardation Tolerance: | < 1/500 |
| Surface Quality: | 20/10 Scratch and Dig |
| AR Coating: | R<0.2% at center wavelength |
| Standard wavelength: | 266nm, 355nm, 532nm, 632.8nm, 800nm, 850nm, 980nm, 1064nm, 1310nm, 1550nm |
