Small Porro Prism
CLASER develops a Small Porro prism for small laser cavity application. It is very good to use this stretched turning prism to replace turning mirror, which can easily be mounted onto a resonant spring device or a simple DC motor to provide a mechanical Q-switching function in the laser cavity. Because our stretched turning prism has its advantage compare to turning mirror:
◆ Simple to use;
◆ Easy to align;
◆ Long lifetime of operation.

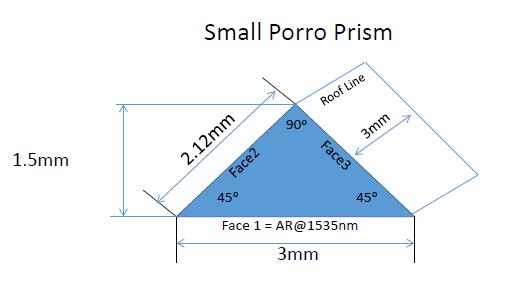

Material: Fused Silica or BK7
Face 1 = AR@1535nm (> 99.8% T) for AOI 0 degto 5 deg
-Laser damage > 20J per 10ns pulse@1535nm, 10 Hz repetition rate
Face2 = Face3 = Polished, uncoated ; No coating overspray
Angle of 90 degless than +/-10 Arc-Sec
Mirror Surface Figure: Lamda/10@633nm
Surface Roughness: <12 A rms
Surface Quality: 10/5
All other Faces Fine Grind
Tolerances for side dimensions, + 0.1 mm, -0.0mm
Tolerance for length, +0.2, -0.0 mm
Minimum chamfer all edges not to exceed 0.2mm EXCEPT Roof Line; Roof Line SHARP, no chips greater than 20 microns
