Off-Axis Parabolic Mirror


离轴抛物面反射镜CLaser develops various off-axis parabolic mirror for very high precision optical system, especially for light source focusing, reflection-type collimator and astronomical telescope.

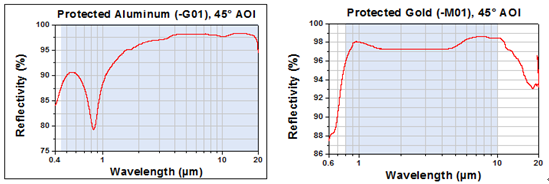

We supply 3 kinds of mirror coating for our off-axis parabolic:
Aluminuim coating, for 450nm-20um
Protected Au coating, for 0.8-10um
Bare Au coating, for 0.8-25um




For easy assembly, we make 3 of screw hole on back side

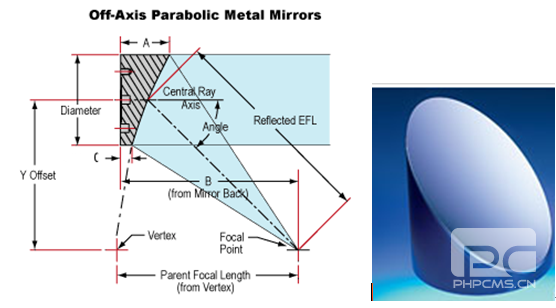

Various off-axis angle, 15, 30, 45, 60, 90 degree are available upon required
Focusing and collimating will not cause spherical and chromatic aberration

Specifications:

Diameter tolerance +0.0/-0.15 mm
Angle of incidence +3.5 '
Working distance ±0.008”
C.A.  90%
Roughness < 175 A RMS
Scratch-Dig 40-20
Flatness L/2 P-V
