CLaser develop GTR-KTP crystal to replace of KTP. GTR-KTP has the following advantage compare with the KTP crystal:

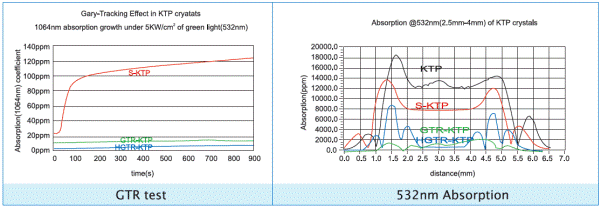

High damage threshold Without gary-track in high power cw intracavity application. Lower absorption in 532nm Higher resistivity
Frequency doubling (SHG) of Nd-doped lasers for green/red outputs. Frequency mixing (SFM) of Nd laser and diode laser for blue outputs. Parametric sources (OPG, OPA and OPO) for 600nm-4500nm tunable outputs. E-O modulators, optical switches, directional couplers. Optical waveguides for integrated NLO and E-O devices.| Dimension tolerance | (W ± 0.1 mm) x (H ± 0.1 mm) x (L + /-0.2 mm) |
| Transmitting wavefront distortion: | l/8 @ 633 nm |
| Clear aperture: | > 90% central area |
| Flatness: | l/8 @ 633 nm |
| Scratch/Dig code: | 10/5 to MIL-O-13830A |
| Parallelism: | better than 20 arc seconds |
| Perpendicularity: | 15 arc minutes |
| Angle tolerance: | Dq < ±0.3°, Df < ± 0.3° |
| AR coating: | R< 0.1% at 1064nm and R<0.4% at 532 nm. |
| Quality Warranty Period: | one year under proper use. |
